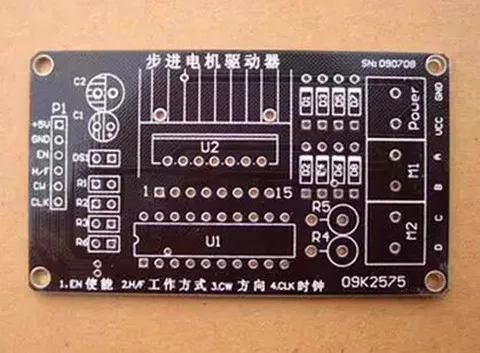

Banh, because you are vietnamese, you can come to to see my translated tutorial of Stepping control of Douglas W. He's my 'online' teacher. He's taught meeh via email for 2 years. If you wanna see the original document, search for Douglas W. Jones Its a wonderful Stepping control tutorial. The torque in these 2mode of full step and half step is different. At full step, if you enable 2 winding at a time, you get 1.4 times stronger torque than normal.

But at half step, the torque will change each half step, 1, 1.4, 1, 1.4.etc. Half step is the combination of 2 full step mode. Half step creat higher resolution. Revolution = cycle, it depends on the number of pulse, not on the half step or full step modes.

With full step, you need N pulses to turn the motor a revolution, in half step, you need 2N pulses. Pulses here means a control vector.
